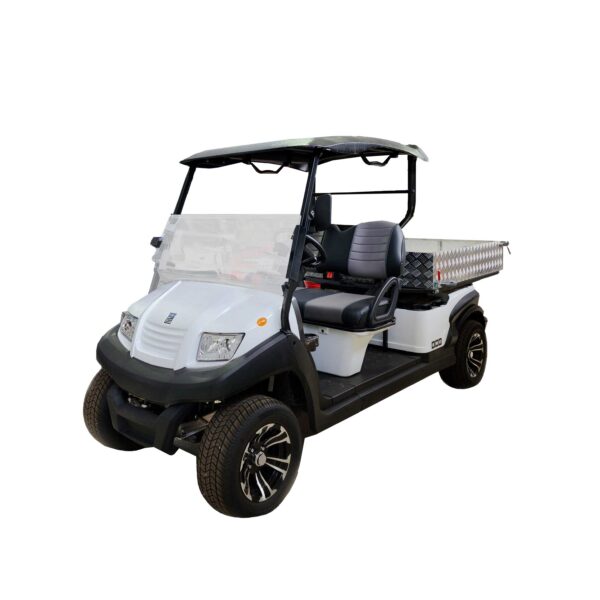

EMC Vantage LWB 2 Seat Long Tray Utility

Description

The EMC Vantage LWB 2 Seat Long Tray Utility can carry up to 350kg and features a manual soft lift utility tray.

Features

  • 5kW AC electric motor / 4kW for SWB & LWB
  • 48v Deep Cycle Trojan Batteries
  • Programmable Zapi Controller
  • Shunt Wound Motor
  • Integrated On-Board Delta-Q Smart Charger
  • Speed: Pre-set to 20km/h or can be set at required lower speed
  • Max Charge Time: 8hr
  • Range (Loaded): > 80km
  • Climbing Ability (Loaded): 20%

OTHER FEATURES

  • Industry leading reinforced front & rear bumpers
  • Split fold tinted plastic windscreen
  • LCD display speedometer
  • Odometer
  • Battery gauge operation of head lights and indicators
  • Headlights, blinkers, horn, tail lights and reverse alarm
  • 10” alloy wheels
  • High and low speed settings forward and reverse
  • 2 point retractable seat belts
  • Aluminium alloy chassis & wheels
  • Lever hand brake
  • Standard tan coloured seats, no cost option for white coloured seats
  • Available in white, red, blue, black or champagne
  • Custom colours available including vinyl wrapping

Specification

SEATING 2
VEHICLE WEIGHT 515kgs
UTILITY TRAY CARRYING CAPACITY 350kgs
OVERALL LENGTH 3670mm
OVERALL WIDTH 1180mm
OVERALL HEIGHT  1980mm
GROUND CLEARANCE 120mm
TURNING CIRCLE 4.5m
UTILITY TRAY DIMENSIONS 1400mm Long x 1100mm wide x 250mm high
UTILITY TRAY TYPE Soft Lift Tipping, Painted Metal, Solid Panel Sides, Drop Down Rear Panel
